gears suspension SuperATV CF Moto UForce U10 Pro 4" Portal Gear Reduction Lift Kit – HunterworksFitment: CFMOTO U10 Pro : 2025+ CFMOTO U10 Pro XL : 2025+ Wheel Requirements: 14 or larger wheel required Wheels cannot exceed 5 backspacing Not compatible with dual beadlock wheels Turn Your UForce U10 Pro into a True Monster If you ask any rock crawler or mud enthusiast how they dominate the terrain, chances are their answer will be GDP Portals. Turn your CFMOTO UForce U10 Pro into a true powerhouse with a SuperATV 4 Portal Gear Lift. Experience
Fitment:
- CFMOTO U10 Pro : 2025+
- CFMOTO U10 Pro XL : 2025+
Wheel Requirements:
- 14” or larger wheel required
- Wheels cannot exceed 5” backspacing
- Not compatible with dual beadlock wheels

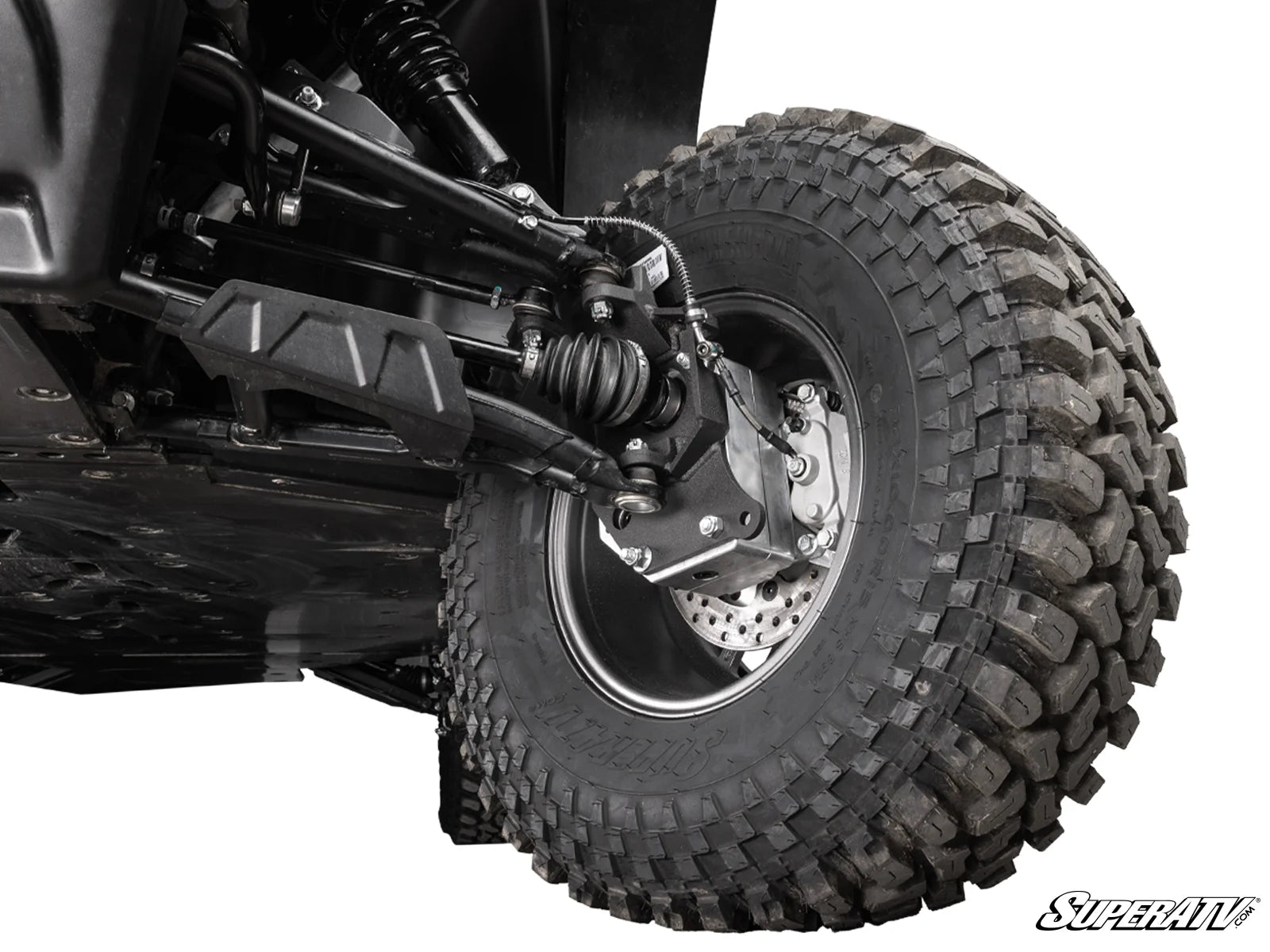

Turn Your UForce U10 Pro into a True Monster
If you ask any rock crawler or mud enthusiast how they dominate the terrain, chances are their answer will be GDP Portals. Turn your CFMOTO UForce U10 Pro into a true powerhouse with a SuperATV 4” Portal Gear Lift. Experience unmatched performance with a kit that combines a lift and gear reduction in a single package. Select either a 15% or 30% gear reduction to maximize torque, and choose between durable cast or billet housings for superior strength.
Built for All Terrain
GDP Portals are designed to match your riding style and terrain. A 15% gear reduction delivers extra torque while maintaining the speed you need for fast trails and dunes. Go for the 30% gear reduction to handle big tires, deep mud, and serious rock crawling with ease. If you like pushing your UForce U10 Pro to the max, portals are the ultimate upgrade.
Protect Your Drivetrain
Since the gear reduction happens right in the wheel hub, our GDP portals take the pressure off the rest of your drivetrain. They do the hard work so parts like your axles, differential, prop shaft, and transmission don’t have to struggle to move those big tires.
You Can’t Beat GDP
We built these portals to take a beating. With cast or billet aluminum housings, they’re tough enough for whatever you throw at them. Plus, we back them up with strong steel alloy plates, so you’re getting strength and quality you can really rely on.
- Our housings are reinforced for gear retention and optimized for oil flow
- Advanced steel alloy backing plates are stronger than chromoly
- Enhance with Portal Blood—gear oil formulated for GDP Portals
- There are no gimmicks and no vents because vents do more harm than good—we know because we tested them
Advanced Gaskets, Seals, and Bearings
Our portals use:
- Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
- A sealed input gear and double-lipped output seal
- 100% sealing coverage throughout so you can forget about oil leaks
- Double-angular contact output bearings to prevent premature wear
- Roller idler and drive bearings to maintain perfect gear meshing
You Couldn’t Ask for Better Support
Still can’t decide which portals will work best for you? We have a technical team available for you to call to get advice to lead you to the right direction. Call today and we’ll get you the GDP Portals of your dreams.
CFMOTO UForce U10 Pro 4” Portal Gear Lift Includes:
- (4) Assembled portal hub complete with 9310 gears, seals, output shaft, advanced gaskets, and thrust bearings
- (4) Universal hubs and stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates
- (2) Front caliper adapters
- (2) Rear caliper adapters
- (12) Shims
- (4) Drive gear spacers
- Upper and lower A-arm mount assemblies
- Extended brake lines
- All required hardware, including recessed castle nut socket
| CFMOTO UForce U10 Pro Max Tire Size | |
|---|---|
| Max Tire Size | Required Suspension |
| 28" | Stock suspension |
| If you need help figuring out which gear reduction is right for you, check out our portal gear reduction calculator. | |
| Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used. | |
